Ports Used by SharePoint

Protocol Port Usage Comment
TCP 80 http Client to SharePoint web server traffic
(SharePoint – Office Web Apps communication)
TCP 443 https/ssl Encrypted client to SharePoint web server traffic
(Encrypted SharePoint – Office Web Apps communication)
TCP 1433 SQL Server default communication port. May be configured to use custom port for increased security
UDP 1434 SQL Server default port used to establish connection May be configured to use custom port for increased security
TCP 445 SQL Server using named pipes When SQL Server is configured to listen for incoming client connections by using named pipes over a NetBIOS session, SQL Server communicates over TCP port 445
TCP 25 SMTP for e-mail integration Cannot be configured
TCP 16500-16519 Ports used by the search index component Intra-farm only
Inbound rule Added to Windows firewall by SharePoint
TCP 22233-22236 Ports required for the AppFabric Caching Service Distributed Cache…
TCP 808 Search – Query processing component
Windows Communication Foundation communication
Search – Query processing component
WCF
TCP 32843 Communication between Web servers and service applications http (default) To use custom port, see references section
Inbound rule Added to Windows firewall by SharePoint
TCP 32844 Communication between Web servers and service applications https
Inbound rule Added to Windows firewall by SharePoint
TCP 32845 net.tcp binding: TCP 32845 (only if a third party has implemented this option for a service application)  Custom Service Applications
Inbound rule Added to Windows firewall by SharePoint
TCP 32846 Microsoft SharePoint Foundation User Code Service (for sandbox solutions) Inbound on all Web Servers
Inbound rule Added to Windows firewall by SharePoint
Outbound on all Web and App servers with service enabled.
TCP 5725 User Profile Synchronization Service(FIM) Synchronizing profiles between SharePoint 2013 and Active Directory Domain Services (AD DS) on the server that runs the Forefront Identity Management agent
TCP + UDP 389 User Profile Synchronization Service(FIM) LDAP Service
TCP + UDP 88 User Profile Synchronization Service(FIM) Kerberos
TCP + UDP 53 User Profile Synchronization Service(FIM) DNS
UDP 464 User Profile Service(FIM) Kerberos change password
TCP 809 Office Web Apps Intra-farm Office Web Apps communication.

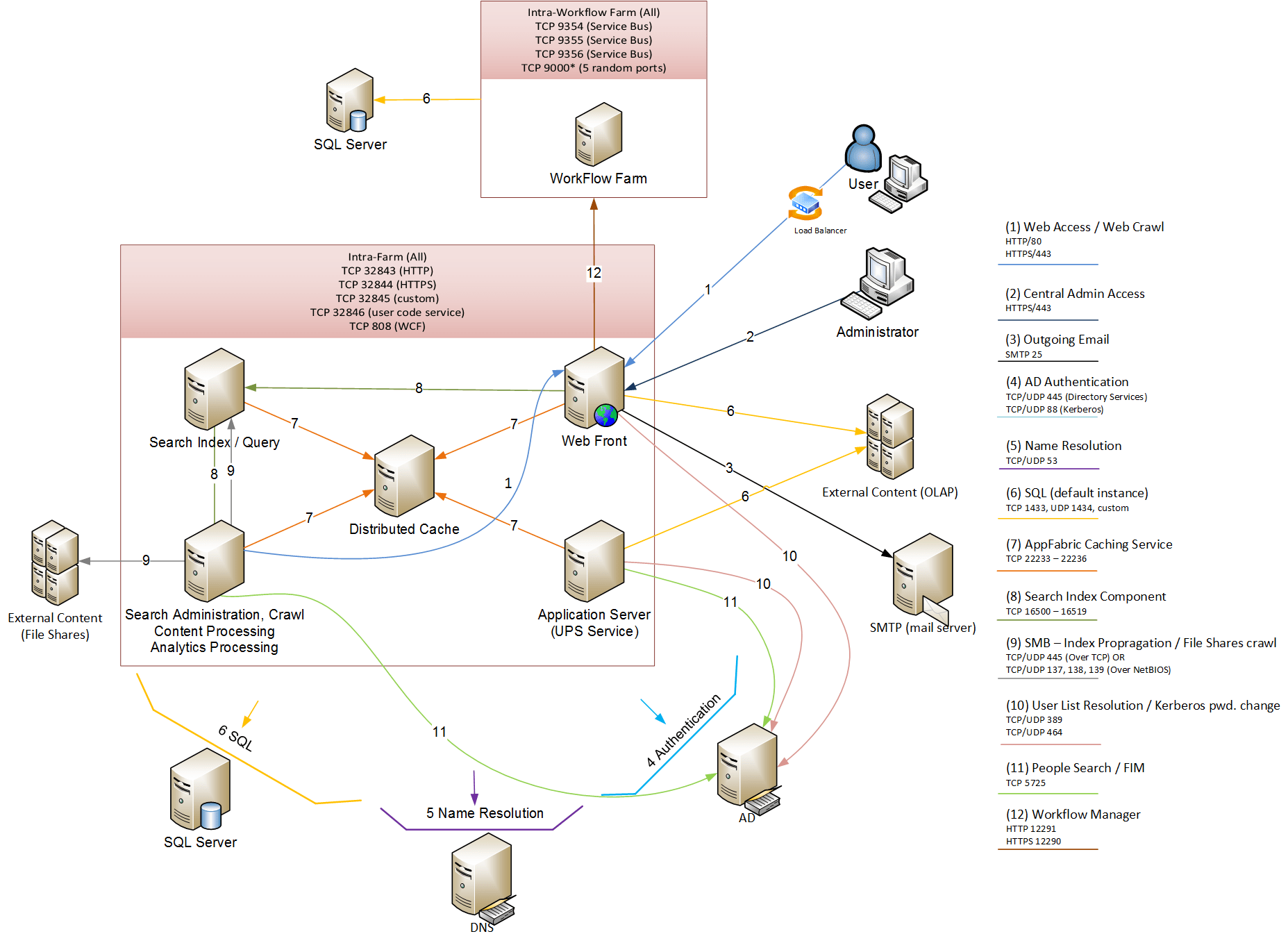

Image source
